This Alkaline Electrolysis Composite Membrane is a proprietary innovation crafted from organic polymers, ceramic powder, and a reinforcing liner. It is widely applied in water electrolysis systems to effectively separate hydrogen and oxygen without blocking the electrolyte. As a technologically advanced product, it serves as a critical component for high-efficiency green hydrogen generation.
상표 :
Rubri
ALKAINE ELECTROLYZED WATER COMPOSITE MEMBRANE
The key material for green hydrogen production
The new composite membrane independently developed by CE is composed of organic polymer, ceramic powder and lining support. Widely used in alkaline electrolysis of water, it can efficiently separate hydrogen and oxygen, and pass the electrolyte. It is a breakthrough and innovative product for the key technology in this field.

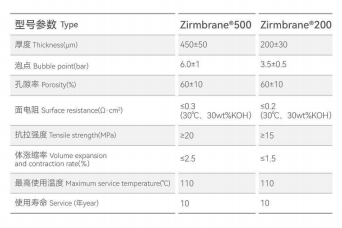

Product Specification
Features and advantages
Safe and stable
High purity
Long life
Customizable

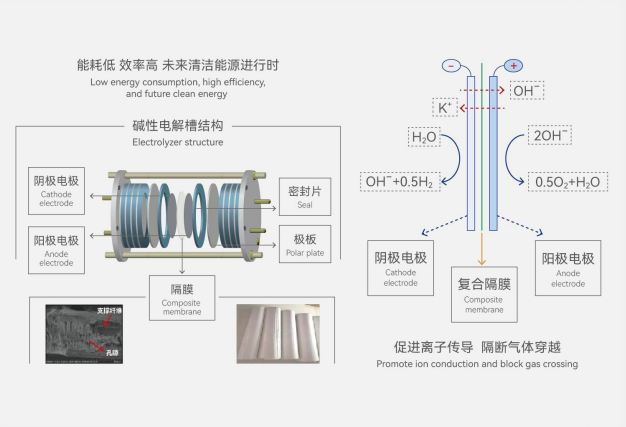

The cross-section of composite membrane
The surface of composite membrane
Low ionic resistance, surface resistance ≤0.3 Ω·cm² (30℃, 30mV%KOH)
Long width range up to 2.5 meters, and the size can be customized according to customer needs
Chemically and mechanically stable, and life is more than 7 years
Permanent hydrophilic, strong electrolyte infiltration
Nanoporous structure, porosity ≥60±10%
High bubble point pressure, high operating safety
The purity of hydrogen is greater than 99.7%
In order to better adapt to the development of electrolyzer,who has developed a three - dimensional composite membrane based on the first nature principle, which is more suitable for the pressurized tank structure.
더 읽어보기
This Alkaline Electrolysis Composite Membrane is a proprietary innovation crafted from organic polymers, ceramic powder, and a reinforcing liner. It is widely applied in water electrolysis systems to effectively separate hydrogen and oxygen without blocking the electrolyte. As a technologically advanced product, it serves as a critical component for high-efficiency green hydrogen generation.
더 읽어보기
알칼리 전해수소 생산 기술은 저렴한 비용, 긴 수명, 풍부한 원료 자원 등의 장점으로 인해 수전해수소 생산 분야를 선도하고 있습니다. 고성능 특수 엔지니어링 플라스틱인 폴리페닐렌 설파이드(PPS)로 제작된 PPS 멤브레인은 고온 및 알칼리 환경에서도 안정적인 성능을 유지하여 알칼리 수소 생산에 적합합니다.
더 읽어보기
