MEA, based on CCM Technique, is the key assembly of PEMFC, is the heart of Hydrogen Fuel Cell, is the right place of chemical material converting into electric energy.MEA which reach an advanced level around the world, and win Geneva International Invention Award. 5-Layer Membrane Electrode Assembly (MEA) with integrated Gas Diffusion Layers (GDL) for use in Hydrogen/Air Fuel Cells. One of the most economical and cost effective MEAs on the market.
상표 :
Rubri정격 출력 전력 :
5kW -200kWProduct Description
MEA, based on CCM Technique, is the key assembly of PEMFC, is the heart of Hydrogen Fuel Cell, is the right place of chemical material converting into electric energy.
MEA of Gatechn company just got a power density up to 0.65V@2300mA/cm², which reach an advanced level around the world, and win Geneva International Invention Award. 5-Layer Membrane Electrode Assembly (MEA) with integrated Gas Diffusion Layers (GDL) for use in Hydrogen/Air Fuel Cells. One of the most economical and cost effective MEAs on the market.
Product Introduction
A hydrogen fuel cell Membrane Electrode Assembly (MEA) is a crucial component in a proton exchange membrane fuel cell (PEMFC). It consists of several layers that work together to facilitate the electrochemical reactions that generate electricity from the chemical reaction between hydrogen and oxygen. Here's a breakdown of the components and their roles within the MEA:
1. Catalyst Layer: The MEA has two catalyst layers, one on each side. The anode catalyst layer facilitates the electro chemical oxidation of hydrogen (H2) into protons (H+) and electrons (e-). The cathode catalyst layer promotes the reduction of oxygen(O2)
into water (H2O) by accepting protons and electrons.Self-developed catalyst by our company High Consistency: Uniform Distribution of Nanoparticle Particle Size. High Electrochemical Activity: ECSA and MA are relatively high. Good Durability: Using high-temperature annealing technology, the catalyst's lifespan
| Model | HPM-H151N |
| Catalyst PGM loading (mg/cm') | 0.45/0.35 |
| Performance in stacks(W/cm’) | >1.5 |
| Catalyst durability in MEA | Cycles of 0.6-0.95V while voltage loss < 30 mV at 0.8 A/cm' and ECSA loss <40% |
| Catalyst suppoort durability in MEA | Cycles of 1-1.5V while voltage loss < 30 mV at 1.5 A/cm2 and ECSA loss <40% |
Multiple Usage Scenarios
Hydrogen fuel cell can be used in various scenarios:
1. PEM fuel cell research
2.Hydrogen fuel cell experiment
3.Green hydrogen energy demonstration
4.Fuel cell powered bike/scooter/motorcycle
5.Hydrogen drones/ hydrogen UAV
6.Portable hydrogen power station
--------------占位---------------
Hydrogen Fuel Cell Membrane Electrode Assembly (MEA) for Proton Exchange Membrane MEA, based on CCM Technique, is the key assembly of PEMFC, is the heart of Hydrogen Fuel Cell, is the right place of chemical material converting into electric energy.MEA , which reach an advanced level around the world, and win Geneva International Invention Award. 5-Layer Membrane Electrode Assembly (MEA) with integrated Gas Diffusion Layers (GDL) for use in Hydrogen/Air Fuel Cells. One of the most economical and cost effective MEAs on the market.
더 읽어보기
Hydrogen Fuel Cell Membrane Electrode Assembly (MEA) for Proton Exchange Membrane MEA, based on CCM Technique, is the key assembly of PEMFC, is the heart of Hydrogen Fuel Cell, is the right place of chemical material converting into electric energy.MEA which reach an advanced level around the world, and win Geneva International Invention Award. 5-Layer Membrane Electrode Assembly (MEA) with integrated Gas Diffusion Layers (GDL) for use in Hydrogen/Air Fuel Cells. One of the most economical and cost effective MEAs on the market.
더 읽어보기

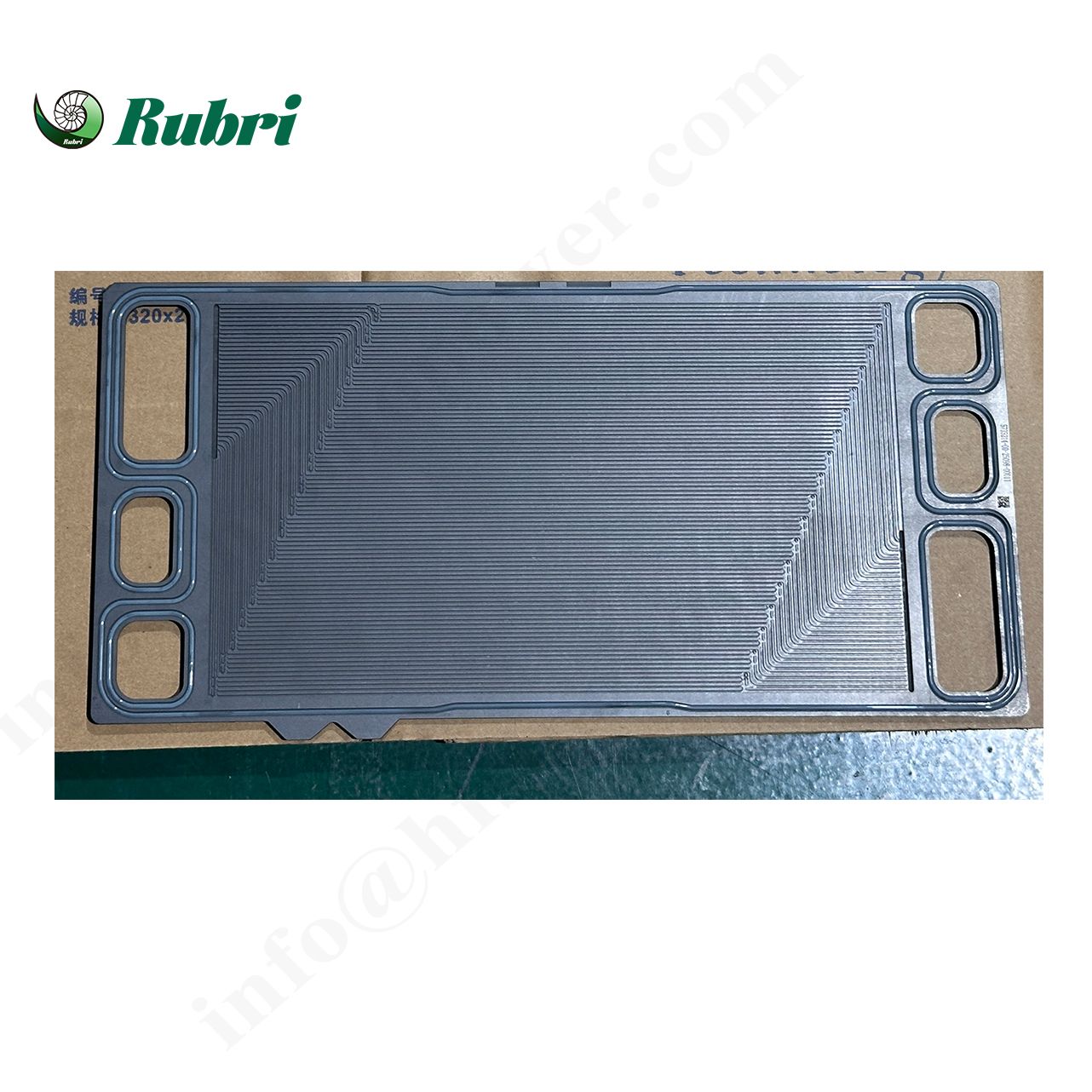

Composite isostatic graphite bipolar plates are high-performance core components for fuel cells, manufactured using isostatic pressing technology and composite graphite materials. Designed specifically for proton exchange membrane fuel cells (PEMFCs), these plates offer excellent electrical conductivity, corrosion resistance, and gas barrier properties.
