This system is a full-process teaching demonstration device for hydrogen fuel cell power generation designed for colleges and vocational schools. It integrates metal hydride hydrogen storage, fuel cell power generation, power management and load application modules, and fully demonstrates the core technology of hydrogen energy conversion into electrical energy. The system is based on proton exchange membrane fuel cell (PEMFC) technology, combined with low-pressure metal hydride hydrogen storage and intelligent monitoring system. It is safe and reliable, and is suitable for experimental teaching and scientific research exploration in new energy, chemical engineering, electrical automation and other disciplines.
Product Description
Hydrogen Fuel Cell Teaching Aids

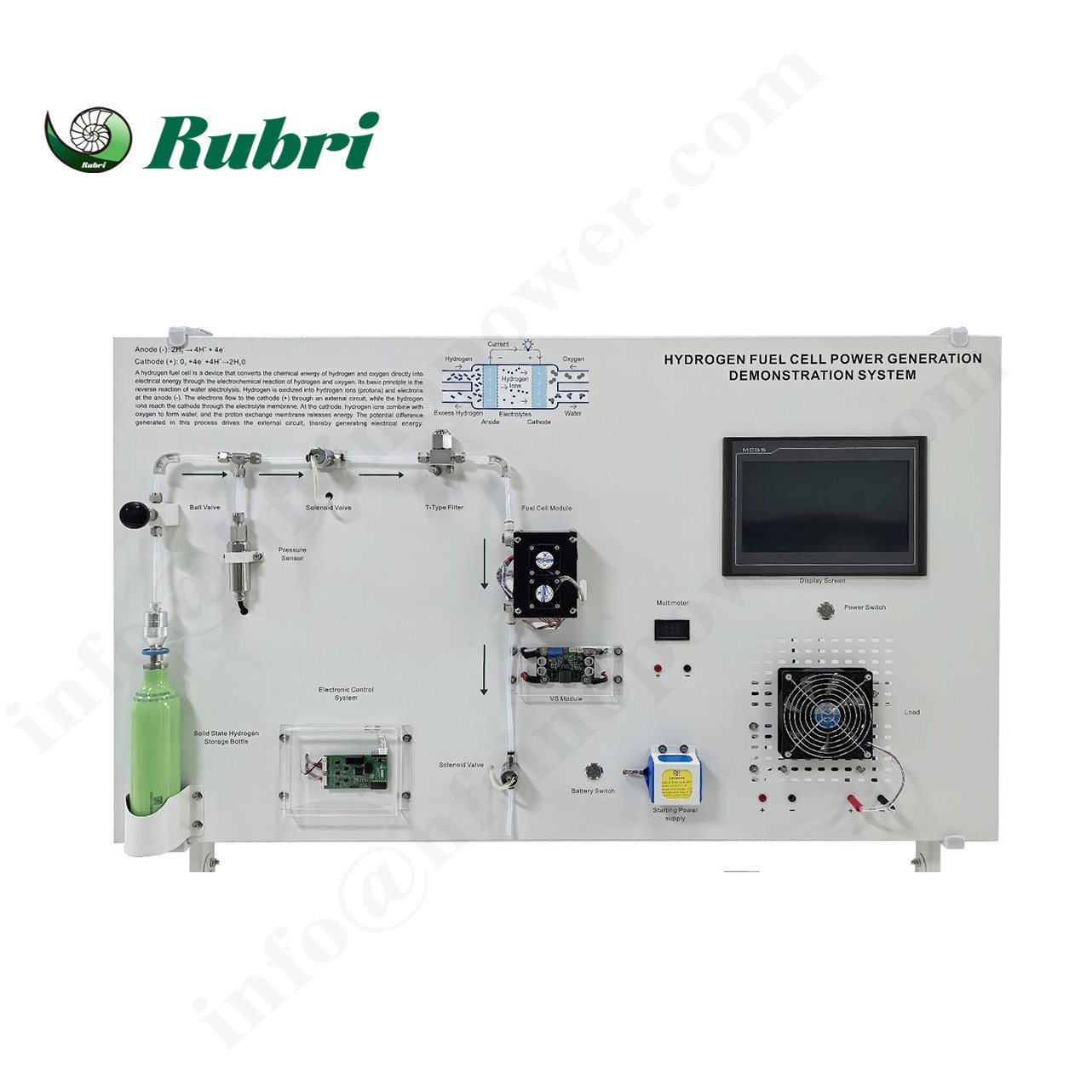

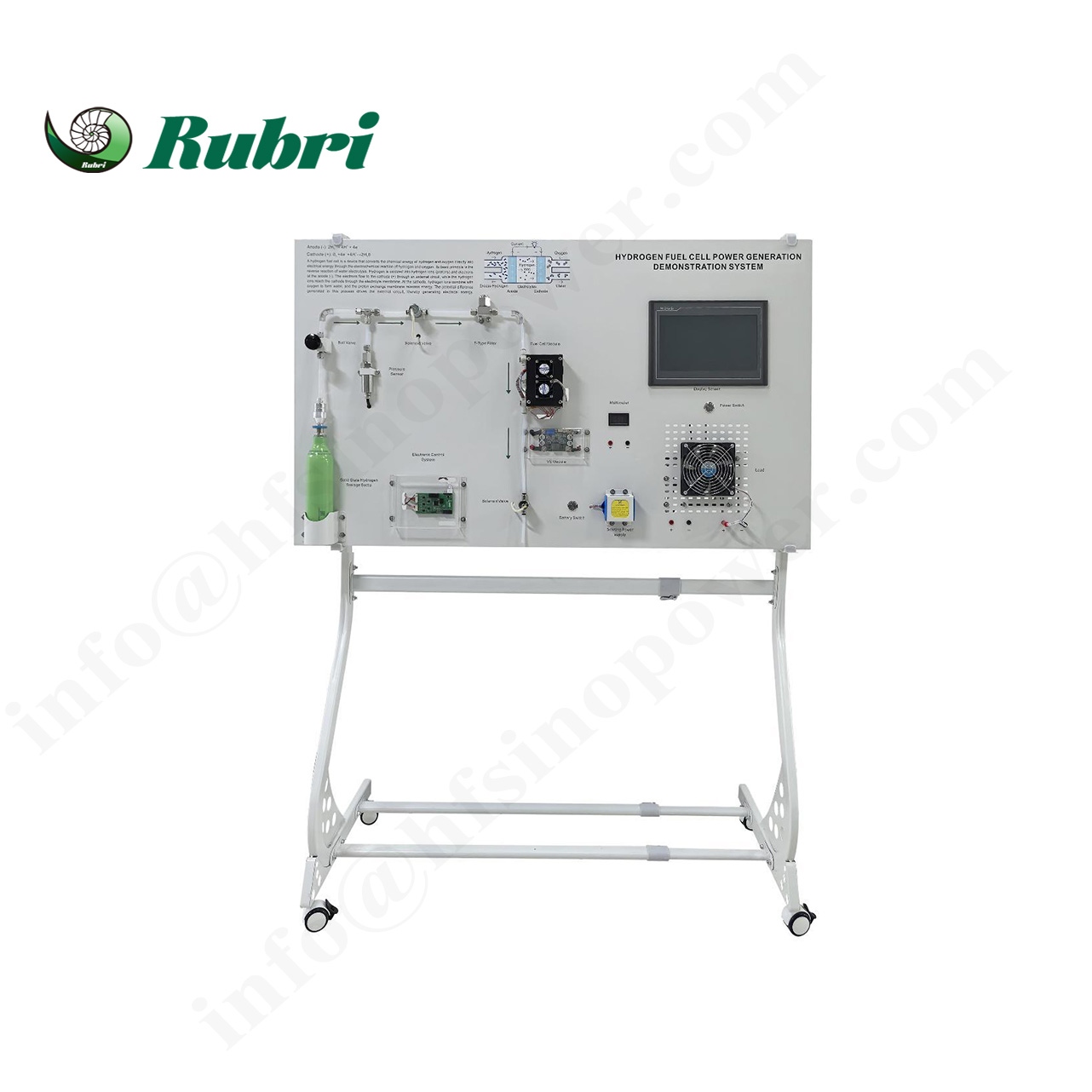

| Hydrogen Fuel Cell Power Generation Demonstration System |
|||||
| Category | Parameter Name | Unit | Parameter | ||
| Metal Hydride Hydrogen Storage Tank |
Diameter | mm | 60 | ||
| Height | mm | 258 | |||
| Weight | kg | 1.5 | |||
| Storage Capacity | g | >20 | |||
| Filling Pressure | Mpa | 1.0 | |||
| Continuous Hydrogen Desorption Pressure |
Mpa | 0.6 | |||
| Hydrogen Release Rate | L/min | >4 | |||
| Fuel Cell | Rated Voltage | V | 19.8 | ||
| Rated Current | A | 10.2 | |||
| Hydrogen Inlet Pressure | MPa | 0.035~0.05 | |||
| Hydrogen Purity | % | ≥99.99 | |||
| Hydrogen Consumption | L/min | 2.89 @rated power | |||
| Stack Weight | kg | 1.43 | |||
수소연료전지 교육장비는 학생들의 협동정신을 고취하고, 학생들의 실무능력을 향상시키며, 과학적 소양, 혁신, 문제해결 능력을 함양하는 데 도움이 됩니다.
더 읽어보기
This system is a full-process teaching demonstration device for hydrogen fuel cell power generation designed for colleges and vocational schools. It integrates metal hydride hydrogen storage, fuel cell power generation, power management and load application modules, and fully demonstrates the core technology of hydrogen energy conversion into electrical energy. The system is based on proton exchange membrane fuel cell (PEMFC) technology, combined with low-pressure metal hydride hydrogen storage and intelligent monitoring system. It is safe and reliable, and is suitable for experimental teaching and scientific research exploration in new energy, chemical engineering, electrical automation and other disciplines.
